Our CPT rigs are able to retrieve soil samples utilising a variety of equipment.

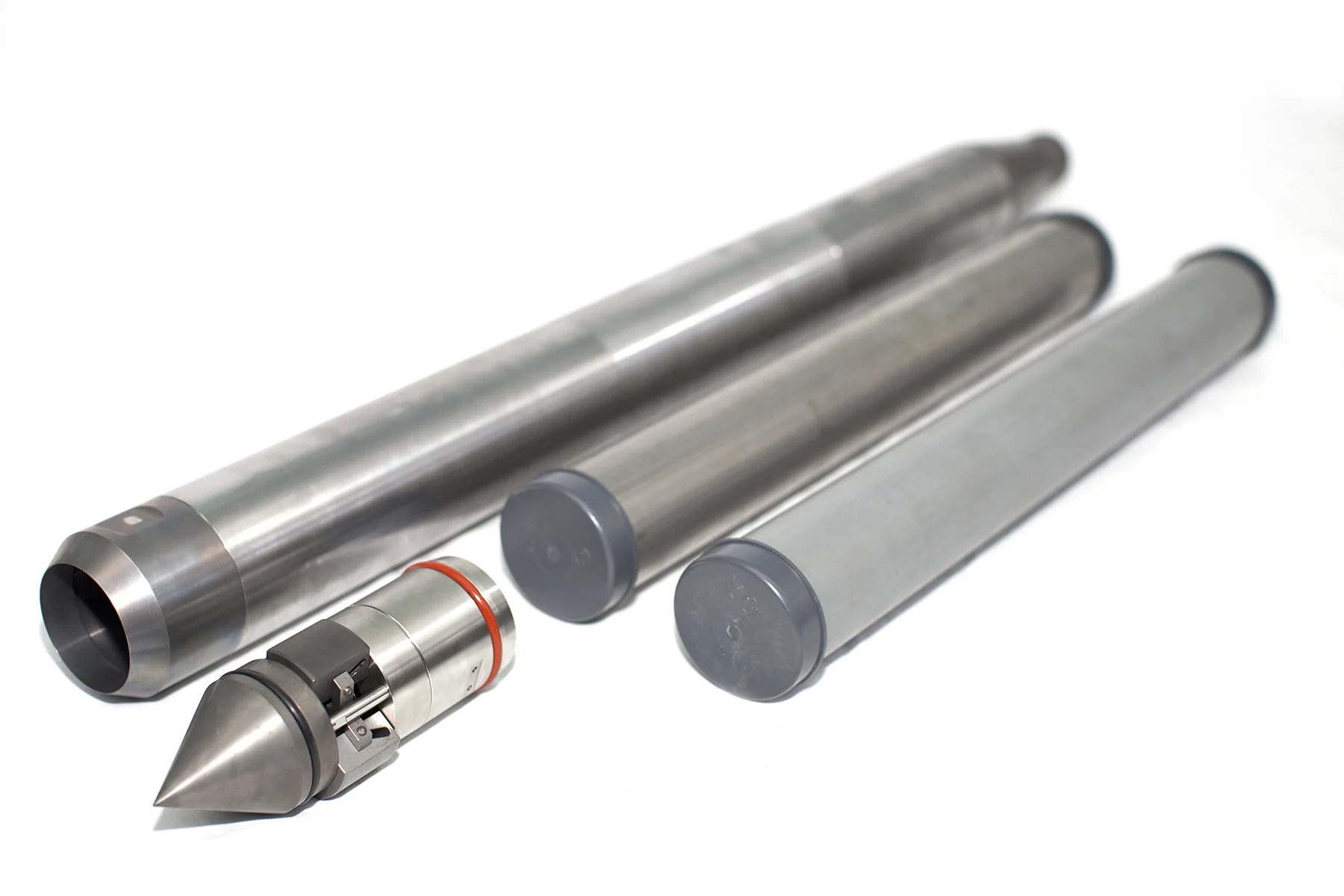

Ranger 66 - available on all CPT rigs This soil sampler provides a 66 mm diameter undisturbed sample suitable for triaxial or oedometer testing. The sample length is 0.55 m. It is a piston sampler. Soil samples can be retrieved in steel or plastic tubes. Soil samples can be retrieved quickly with the CPT trucks.

Ranger 66 - available on all CPT rigs

This soil sampler provides a 66 mm diameter undisturbed sample suitable for triaxial or oedometer testing.

The sample length is 0.55 m.

It is a piston sampler.

Soil samples can be retrieved in steel or plastic tubes.

Soil samples can be retrieved quickly with the CPT trucks.

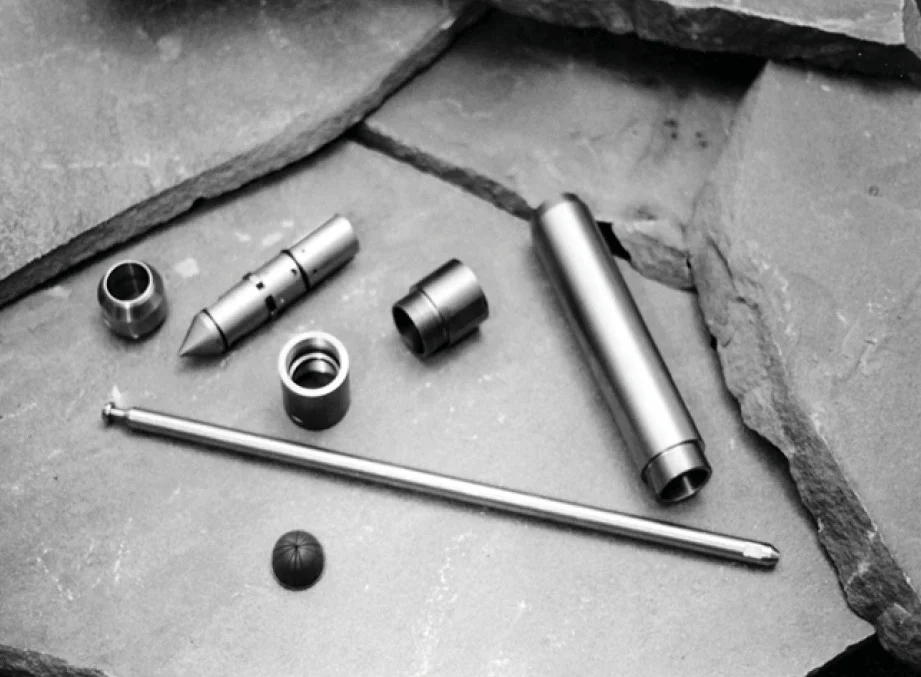

VERTEK - available on all CPT rigs This soil sampler provides a 35 mm diameter undisturbed sample. It can sample over a 0.5 m length but it is modular so can be extended. It is a piston sampler. Soil samples can be retrieved in split tubes or plastic tubes. Soil samples can be retrieved quickly with the CPT trucks.

VERTEK - available on all CPT rigs

This soil sampler provides a 35 mm diameter undisturbed sample.

It can sample over a 0.5 m length but it is modular so can be extended.

It is a piston sampler.

Soil samples can be retrieved in split tubes or plastic tubes.

Soil samples can be retrieved quickly with the CPT trucks.

MACRO and DT22 - available on Geoprobe This soil sampler provides a 35 mm diameter undisturbed sample. It can sample over a 1.5 m length but it is modular so can be extended. It is hammered into the ground with the Geoprobe.  Soil samples are retrieved in plastic tubes. Soil samples can be retrieved quickly with the Geoprobe. The DT22 has casing and is more efficient below a depth of 5 m.

MACRO and DT22 - available on Geoprobe

This soil sampler provides a 35 mm diameter undisturbed sample.

It can sample over a 1.5 m length but it is modular so can be extended.

It is hammered into the ground with the Geoprobe.

Soil samples are retrieved in plastic tubes.

Soil samples can be retrieved quickly with the Geoprobe.

The DT22 has casing and is more efficient below a depth of 5 m.

MOSTAP - available on all CPT rigs This soil sampler provides a 35 mm diameter undisturbed sample. It can sample over a 1.8 m length. It is a piston sampler. Soil samples are retrieved in fabric sock. Soil samples can be retrieved quickly with the CPT trucks.

MOSTAP - available on all CPT rigs

This soil sampler provides a 35 mm diameter undisturbed sample.

It can sample over a 1.8 m length.

It is a piston sampler.

Soil samples are retrieved in fabric sock.

Soil samples can be retrieved quickly with the CPT trucks.



Shelby soil sampling tubes - available on Geoprobe This soil sampler provides various sizes with the 63 mm (U63) being the most common. It can sample over a 0.5 m length for a U63 but can be longer. Soil sample tubes are sealed at the ends with plastic plugs. Soil samples can be retrieved quickly with the Geoprobe

Shelby soil sampling tubes - available on Geoprobe

This soil sampler provides various sizes with the 63 mm (U63) being the most common.

It can sample over a 0.5 m length for a U63 but can be longer.

Soil sample tubes are sealed at the ends with plastic plugs.

Soil samples can be retrieved quickly with the Geoprobe
